| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | ATTN-FCA-01-B01 |
| ขั้นต่ำ: | 100PCS |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 3-5 days |
| เงื่อนไขการจ่ายเงิน: | T/T or western Union |

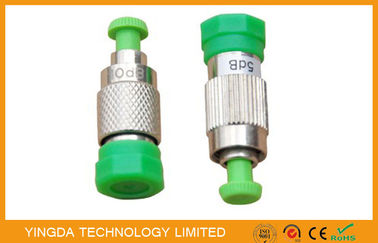

FC/APC Female To Male Attenuator (FC APC F-M ), Plug-in Type Optical Attenautor
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in
order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,
5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.
Features
Application
Technical Parameter
|
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
|
Attenuation Tolerance(dB) |
1-5dB＜±0.5 dB |
|
5-10dB＜±10% |
|
|
11-25dB＜±5% |
|
|
Operating Wavelength(nm) |
1310±10nm |
|
1550±10nm |
|
|
1310 and 1550±10nm |
|
|
Operating Temperature(℃) |
-40℃～+75℃ |
|
|
