Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xAttenuation | 0- -40 dB Variable | test wavelength | 1200-1650mm |
---|---|---|---|
type | mechanical adjustable attenuator | Working temperature | -40~+85 (℃) |
Fiber optic type | single-mode,multimode | connector type | SC ST FC LC MU all ok |
polish | UPC APC PC | connector plug time | 1000 times |
package | 1pc in a blister box | connector color | green,blue,beige |
cable diameter | 0.9mm, 2.0mm | ||
แสงสูง | optical fiber attenuator,inline optical attenuator |

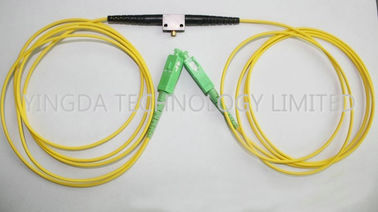

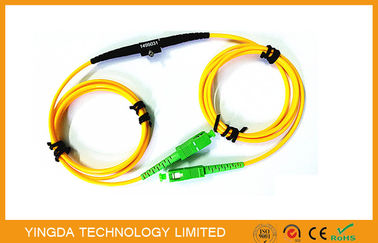

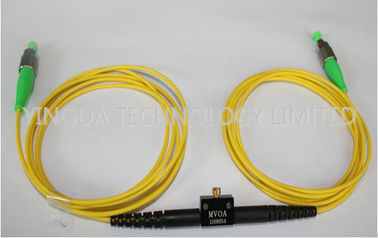

SC FC LC MU Inline Attenuator, Fixed In-line Fiber Optic Attenuator SM 1Meter Range:1~40dB
Description
Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined
attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its
Impedance. Attenuators are widely used in the cable television system in order to meet the
requirements of multi port for electric level such as the amplifier input, output level control,
branch attenuation control.
Product features:
- Ultra high resolution
- Environment protection, perfect stability and reliability
- Can be used in different wavelength (1260-1620nm)
Application:
- Telecommunication Network
- CATV Network
- Data communication
- Instrumentation
- Local Area Network
- Fiber Optic Access Network
Specification
Item |
Value |
Operating wavelength (nm) |
1260~1620 or customized |
Insertion loss (dB) |
< 1.0 |
Attenuation value (dB) |
>65 |
PDL (dB) |
<0.15 (<15dB (attenuation range) |
<0.25 (16~65dB (attenuation range) |
|
Return loss (dB) |
>45 (UPC) |
Working power (mw) |
300 |
Operating Temperature(℃) |
-5~70 |
Storage Temperature(℃) |
-40~85 |
Fiber type |
9/125μm |
Package size (mm) |
15.0x15.5x5.0 |
Note: under normal conditions, not including connectors, welding device and end face loss
Order information
Item |
Wavelength working/nm |
Fiber type |
Pigtail length /meter |
Connector |
Mechanical Variable Attenuator (MVOA) |
F=1260~1620 |
SM=single mode |
1=1.0m |
1=FC/APC |
FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm
connectors: SC FC LC ST ,etc

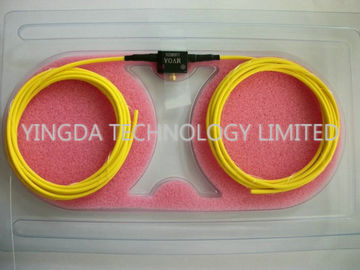

Package: blister box individual package
Polish method: UPC APC PC
Cable type: singlemode, multimode
Cable type: below is 0.9mm blue color
