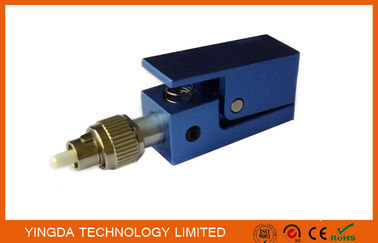

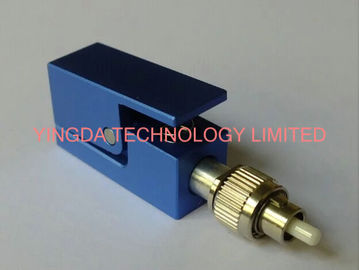

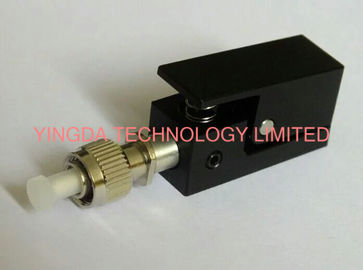

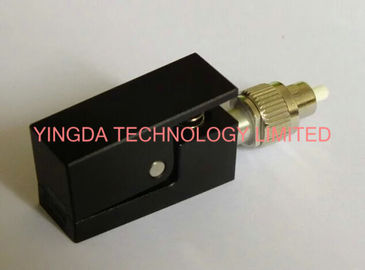

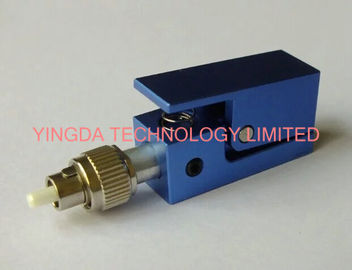

FC Square Bare Fiber Adapter, FC Bare Fiber Optic Adatper Metal Black Blue Grey
Description
Bare Fiber Adapter can link bared optic and light source ,testing equipment, light appearance etc,
and the products used for test appearance and temporary conjunction between fiber optics
extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,
the other side is a connector that can plug into the equipment.
Feature
Application
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
|
|
