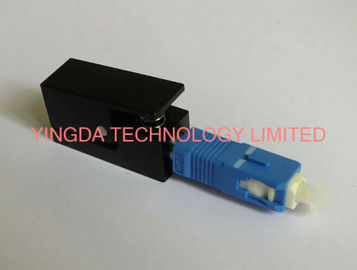

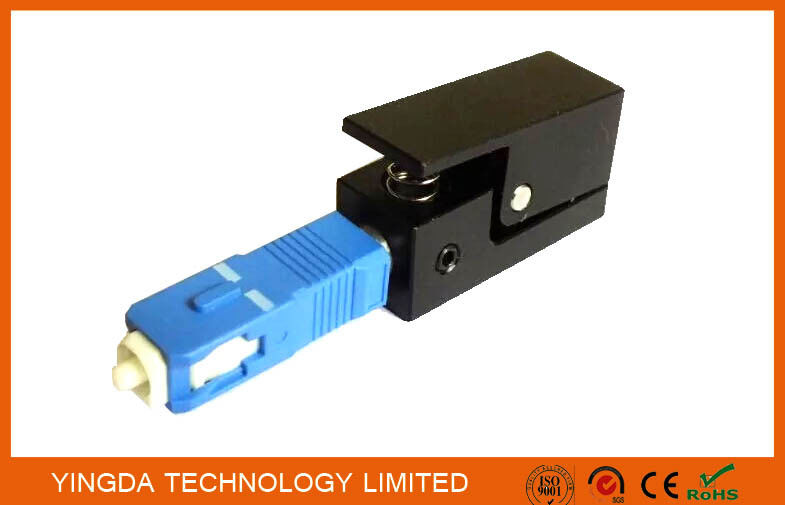

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | Metal, Plastic | house color | blue, black, gray |
---|---|---|---|
shape | square | type | bare fiber optic adapter |
weight | 12g | Fiber type | single-mode,multimode |
polish methold | UPC APC | insertion loss | <0.2dB |
แสงสูง | fiber optic coupler,bare fiber adapter |
Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler
Description
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
SC Square Type Bare Fiber Adapter can link bared optic and light source ,testing equipment,
light appearance etc,and the products used for test appearance and temporary conjunction between
fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,
the other side is a connector that can plug into the equipment.
Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber
emergency repair and temporary connection.
Feature
- Simplex and quickly interconnect
- Low insertion loss
- Good repeatability and exchangeability good
- Stabilize the credibility
- Interchangeable connector heads available
- SC FC LC ST connectors available
- Cutomer package OK
- 10PCS/ blister box, save shipping cost
Application
- Testing fiber on the reel
- Optical fiber through connection test
- Two-way communication during optical-fiber cable installation and maintenance
- First-aid repair,temporary connection and testing on optical fiber project.
Specification
Shape |
Square / Round |
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
Applicable fiber |
SM & MM |
Ferrule diameter |
123-127 um |
Ferrule outder diameter |
2.499mm 1.249mm |
Cable diameter |
250um & 900um |
Insertion Loss |
≤0.20dB |
Repeat ability |
<0.2dB |
Tensile strength |
100g |
Plug time |
>1000 times |
Operating Temperature |
-40 ~+85℃ |
Size |
Length:40mm, diameter:30mm |

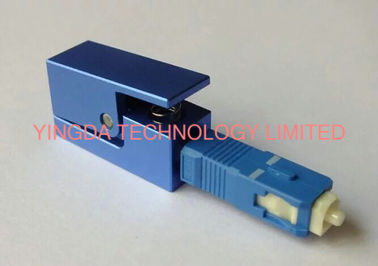

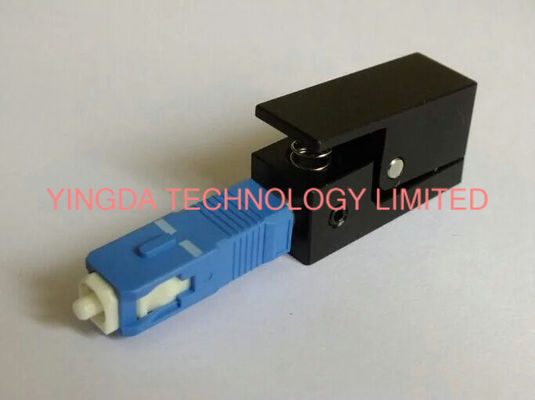

Bare Fiber Adapter Gray Metal Parts Square Type SC/UPC --- Blue House:
Bare Fiber Adapter Gray Metal Parts Square Type SC/APC -- Green House :
