12 Port Fiber Optic Patch Panel
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | cold rolled steel | color | black |
---|---|---|---|
capacity | 24 fibers | adapter | SC duplex 12pcs |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN LAN WAN network |
dimension | 430*300*1U or 430*250*1U | thickness | 1.0mm |
แสงสูง | rack mount odf,optical distribution frame |

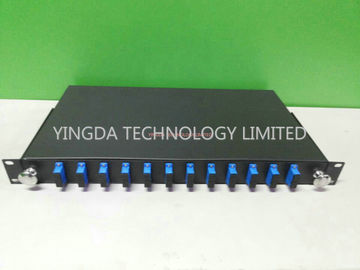

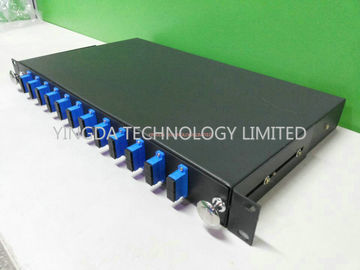

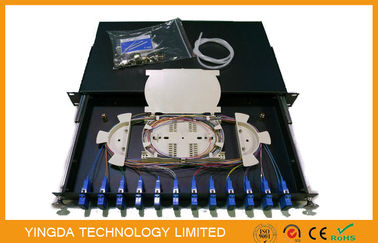

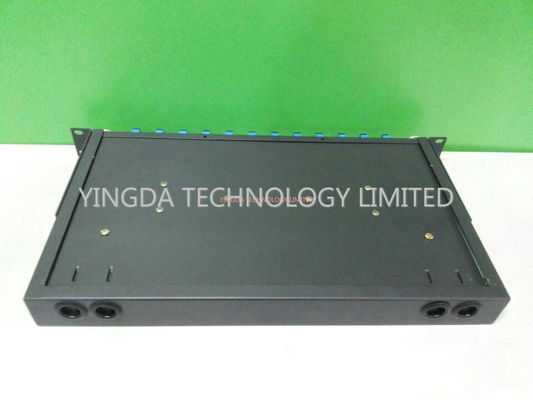

19” SC Sliding Patch Panel, 12 Port Fiber Optic Patch Panel SC Duplex
GPSM series can be applied in branch connection of optical cable termination;
- Made of spray the surface of cold rolled sheet
- 19inch standard structure
- sliding design
- rack mount
- Suitable for SC FC LC ST adapters
Features
- protection cable and wiring pigtail connection
- make cable components and the box body insulate,easy to lead ground.
- to provide cable terminal place and the remaining fiber storage space, convenient
- installation and operation
- With strong impact strength box body, convenient in different places to install
- wall mount,rack mount or, directly placed in the groove
- not suitable used in the open air (outdoor), if you want to use, please use the
- corresponding protection measures
- single fiber splice tray capacity: 24 core
Technical characteristics:
- service life: 20 years
- Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
- withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
- Fire-retardant class: UL94 VO 70Kpa-106Kpa
Working environment:
- Environmental temperature: -40 -+80°C
- Relative humidity: ≤85% (+30°C)
- Atmospheric pressure: protection level (EN60529): IP54, IP58.
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size (mm) |
Qty/ carton (pc) |
G.w (kg) |
GPSM-1U-SC12 |
430*300*1U |
12 |
485*420*350 |
5 |
29 |
GPSM-1U-FC24 |
24 |
485*420*350 |
5 |
29 |
|
GPSM-1U-2SC24 |
48 |
485*420*350 |
5 |
29 |
|
GPSM-2U-FC48 |
430*300*2U |
48 |
500*355*550 |
4 |
26.5 |
GPSM-4U |
130*300*4U |
192 |
500*350*540 |
1 |
18.9 |
