12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น GPRF-1U-SC12
จำนวนสั่งซื้อขั้นต่ำ 100pcs
ราคา negotiable
รายละเอียดการบรรจุ 1 piece per box, 5 pieces per carton box
เงื่อนไขการชำระเงิน T/T, Western Union, MoneyGram
สามารถในการผลิต 2000pcs/month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
material cold-rolled steel steel thickness 1.0mm
color white dimension 430*300*44.5mm
cable ports 4 pcs at back of the box front port adapter port
adapter SC, FC, LC, ST, E2000 max capacity 24cores SC / 1U ; 2U:48 cores SC
customer LOGO silk print fiber mode singlemode, multimode
sample ok
แสงสูง

optical distribution frame

,

sliding patch panel

ฝากข้อความ
รายละเอียดสินค้า

12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails



Model: GPRF-1U-SC12





Main introduction:



Material: box body using high-quality cold-rolled steel material, and the surface use matt spray

processing technology, strong adhesion, it is not easy to fall off, beautiful and durable



Usage: cable terminal branches terminating, 19 "standard structure, rack installation, suitable for

use in the installation of the FC, SC, St, LC adapter, dust proof deign, easy to operate.



Structure characteristics:

  1. The performance index of the product conforms to the national standard YD/T925 - 1997 requirements.
  2. unique 1 ~ 4 inlets and 1 ~ 48 outlet ports for fibers, enhance the flexibility.
  3. Indoor cable inlet outlet are made of oil resistant rubber body to seal, the user can according to their own needs to choose cable, fiber outlet is the use of punctured, to ensure that the box sealing.
  4. box overlay structure fused splice tray and independent insulated grounding device, the fiber core configuration, expansion and cable grounding flexible, convenient and safe to use.
  5. The box is designed removable dustproof cover panel, can be completely sealed, avoid external dust, more scientific and more convenient.
  6. The steel thickness:1.0mm



Main technical index:

  • The dimensions (mm): (length * width * height) 430*300*44.5
  • Weight:4.0KG
  • Fiber radius of curvature:≥40mm
  • The additional loss: fiber without additional loss in the holding tray
  • The fiber length in the tray: 1.6m
  • The fiber maximum capacity: SC/FC 48 cores, LC up to 96 cores
  • The applicable temperature range: -40℃~+60℃
  • The lateral pressure: 500N
  • Anti-shock: 750N



Specifications



Type

Dimension

(mm)

Max capacity

(core)

GPRF-1U-SC24 430*300*1U 24
GPRF-1U-FC24 430*300*1U 24
GPRF-1U-2SC12 430*300*1U 24
GPRF-1U-2SC24 430*300*1U 48



Standard accessories



Item quantity
terminal box body: 1sets
mounting ears: 1 sets
adapter mounting screws: 96pcs
welding mark 4 sets
optical fiber protection tube 2 ~ 48pcs
cable tie: 4 ~ 16pcs

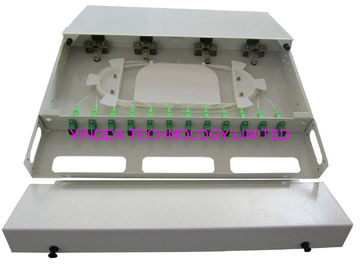

12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails 0

The front adapter can use FC, SC, LC, ST, E2000 adapters. above photo is: 24 pieces FC adapters square.

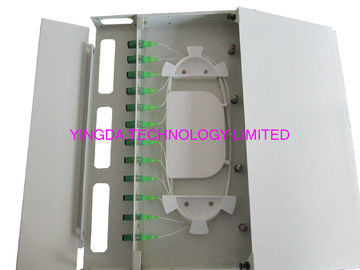

12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails 1

The front adapter can use FC, SC, LC, ST, E2000 adapters.

above photo is: 12 pieces adapters FC square;

the adapter panel can be flexible changed into SC, LC or ST types, only change the adapter panel modular, easy to install and use.





Packaging information:



Model Inner package size Inner package weight Outer package size Outer package weight Outer package quantity
GPRF 475*335*44.5mm 4.0kg 485*400*350mm 22kg 5pcs





YINGDA produces all kinds of fiber optic terminal box, fiber optic patch panels. it can be rack moun, sliding out with drawer, dustproof type. The front adapter panel can be fixed, or flexible to change with adapter panels.  If you have special requirements we can design and make your own box.



  • Sample can be offered
  • Customer logo can be print.
  • Pigtails or adapters can be pre-temrinated at factory.
  • 100% brand new material and package.
