| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | FPC-THSS-A02 |
| ขั้นต่ำ: | 200 pcs |
| ราคา: | 0.36USD-30USD |
| ระยะเวลาการจัดส่ง: | 7days after payment |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |

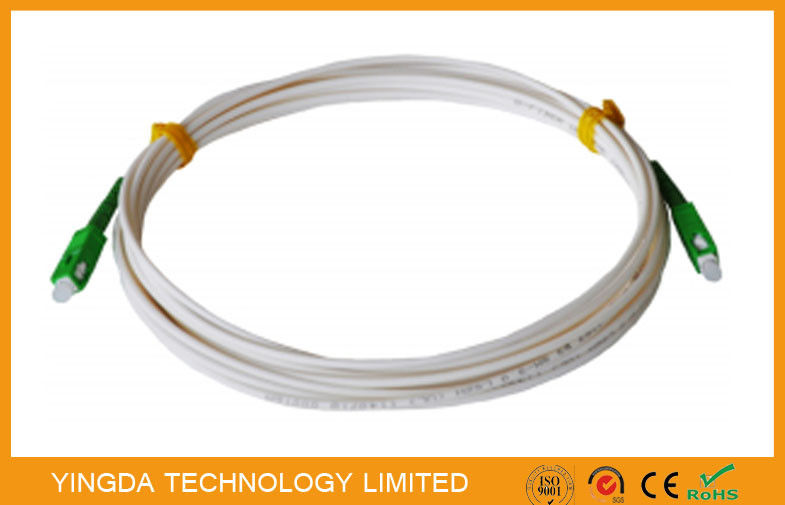

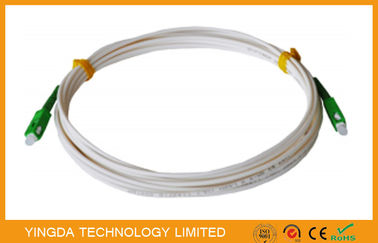

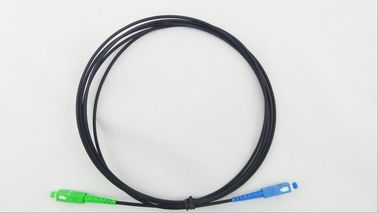

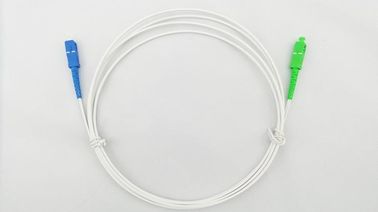

FTTH Patch Cord (Drop Cable) 1 Core SC / APC - SC / APC simplex SM LSZH 1M
Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center,
on both sides is two parallel nonmetallic reinforcing element (FRP) or metallic strength
member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke halogen-free
flame retardant (LSZH) sheath.
Features
Specification
|
Parameter |
Single mode |
Multimode |
||||
|
SPC |
UPC |
APC |
UPC |
|||
|
Cable diameter |
Ф3.0*2.0mm drop cable or other specified |
|||||
|
Cable capacity |
1core, 2core, 4core, 8core, 12core or other specified |
|||||
|
Fiber type |
G652D, G657A1,G657A2 |
|
|
|||
|
Insertion los s(dB) |
<0.3 |
<0.5 |
|
|||
|
Return loss (dB) |
≥50 |
≥55 |
≥60 |
≥30 |
|
|
|
Repeatability |
≤0.3 ,1000 times |
|||||
|
Operating temperature |
-40 ~ + 85 °C |
|||||
|
Storage temperature |
-40 ~ + 85 °C |
|||||
|
Connector type |
SC/UPC,SC/APC,FC/UPC,FC/APC,LC,LC/APC,ST/UPC |
|||||
|
Cable jacket |
LSZH,PVC (white, black, yellow optional) |
|||||
Optical fiber mechanical performance
|
TEST report |
Indicator |
|
Screening level (%) |
≥2.0 |
|
Minimum bending radius (mm) |
10 ( G657A1 ) |
|
Coating stripping force (N) |
Peak 1.3≤F≤8.9 |
|
Average 1≤F≤5 |
|
|
Static fatigue index (nd) |
≥20 |
|
Dynamic tensile strength (Gpa) |
≥3.8 |
|
Single core secondary coating diameter |
250um |
Application
