| ขั้นต่ำ: | 100 PCS |
| ราคา: | 0.04USD-2.15USD |
| บรรจุภัณฑ์มาตรฐาน: | 1 pc / bag or 10 pc/ blister box |
| Delivery period: | 3 days |
| วิธีการจ่ายเงิน: | T/T or western Union |
| ความสามารถในการจัดหา: | 50,000pcs per month |

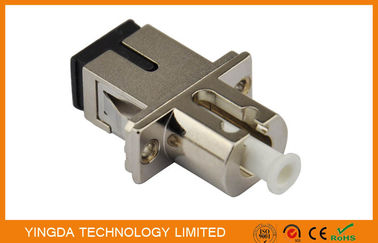

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter
Description:
Hybrid adapter can connect different types of connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Features
Specification
|
Insertion loss |
≤0.2dB |
|
Insert-pull test |
1000 times |
|
Repeat ability |
≤0.1dB |
|
Tensile strength |
≥10kg |
|
Operating temperature |
-40°C~85°C |
|
Sleeve materials |
Ceramic or Metal |
|
Standard |
Bellcore TA-NWT-001209 |
|
Storage temperature |
-40°C~85°C |
Application
Order information
|
Housing Material |
Sleeve Material |
Channel |
|
zinc alloy |
Ceramic |
Simplex |
|
Plastic |
Phosphor bronze |
duplex |
|
|
| ขั้นต่ำ: | 100 PCS |
| ราคา: | 0.04USD-2.15USD |
| บรรจุภัณฑ์มาตรฐาน: | 1 pc / bag or 10 pc/ blister box |
| Delivery period: | 3 days |
| วิธีการจ่ายเงิน: | T/T or western Union |
| ความสามารถในการจัดหา: | 50,000pcs per month |
CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter
Description:
Hybrid adapter can connect different types of connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Features
Specification
|
Insertion loss |
≤0.2dB |
|
Insert-pull test |
1000 times |
|
Repeat ability |
≤0.1dB |
|
Tensile strength |
≥10kg |
|
Operating temperature |
-40°C~85°C |
|
Sleeve materials |
Ceramic or Metal |
|
Standard |
Bellcore TA-NWT-001209 |
|
Storage temperature |
-40°C~85°C |
Application
Order information
|
Housing Material |
Sleeve Material |
Channel |
|
zinc alloy |
Ceramic |
Simplex |
|
Plastic |
Phosphor bronze |
duplex |
