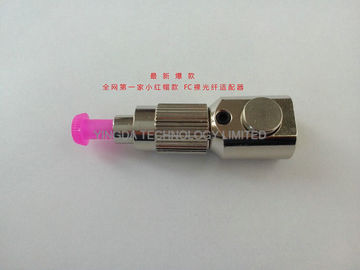

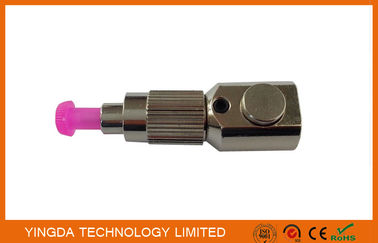

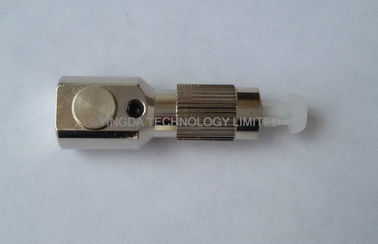

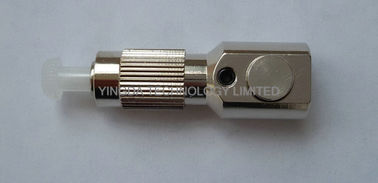

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter
Bare fiber adapters provide a simple and effective way to use un-terminated fibers
with commercial receptacles.
Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily
removed with piano wire, allowing hundreds of insertions. They are recommended for power meter
hook-ups, temporary system repairs or wherever a quick fiber connections is required.
1. Application:
2. Feature:
3. Specification:
|
Item |
LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc |
||
|
Type |
Multi-Mode |
Single-Mode |
|
|
Light Characteristic |
OperatingWavelength |
850nm&1300nm |
1310nm & 1550nm |
|
Typical Insertion Loss |
0.2dB & 0.2dB |
0.2dB & 0.2dB |
|
|
Mechanical Testing |
Repeatability |
≤0.2dB |
|
|
Exchange |
≤0.2dB |
||
|
Durability |
>1000 (Times) |
||
|
Temperature |
Storage Temperature |
25 ~+85 |
|
|
OperatingTemperature |
25 ~+85 |
||
|
Length,Color,Out-Diameter,Fiber counts |
According to the customers' requirement |
||
|
|
