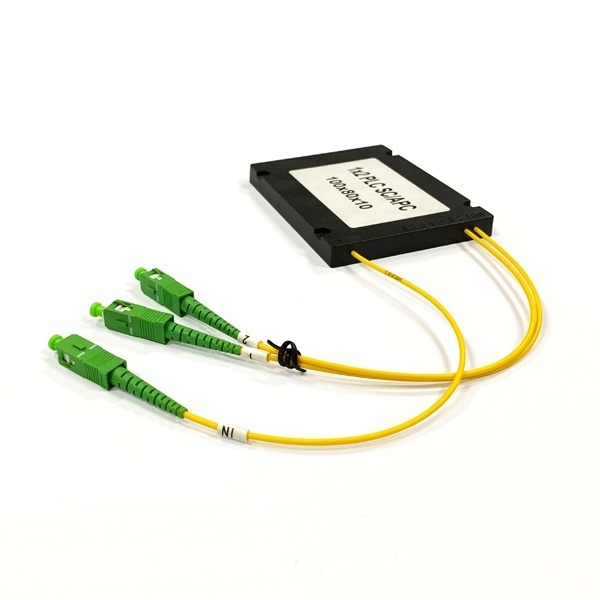

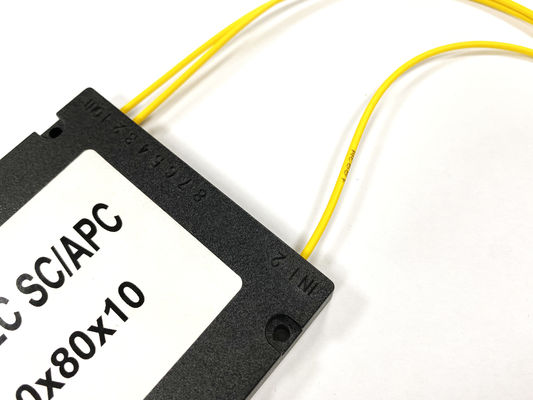

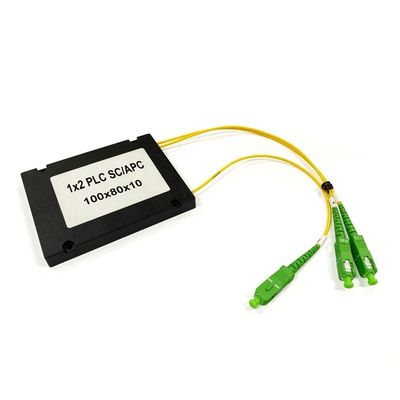

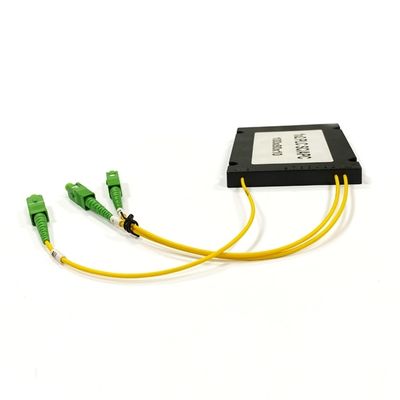

1*2 Fiber Optical Splitter Module, Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
Planar wave guide optical separator (PLC Splitter) is an integrated wave guide optical power distribution device based on quartz substrate, which has the characteristics of small volume, wide working wavelength range, high reliability, and good light separation uniformity.
YINGDA provides whole series of 1xN and 2xN splitter products for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Sell point
1.Brand Promise: YINGDA is committed to providing high-quality and reliable products. The Summitedek Single Mode Fiber Optic Splitter is backed by a powerful warranty of 1 year, ensuring the customer's satisfaction and trust in the brand.
2.Advanced Splitter Technology: The Summitedek Single Mode Fiber Optic Splitter boasts breakthrough PLC splitting technology, offering a wide array of port options including 1X2, 1X4, 1X8, catering to versatile connectivity needs and making it suitable for various FTTX scenarios.
3.Versatility and Adaptability: The Splitter's compatibility with different data networks (such as 5G, 4G, GSM, and 3G) makes it suitable for various network environments, ensuring adaptability to evolving technology demands. Moreover, it can support multiple ports and flexible power supply with a DC 12V configuration.
4.Robust Construction: The strong ABS material used in the Splitter box guarantees its durability and resilience, ensuring the protection and stability of the connected fiber optic equipment even under challenging conditions.
5.High Connectivity Standards: The LF Single Mode Fiber Optic Splitter features LC and APC connectors, which are industry standard connectors. This provides a high level of connectivity and compatibility with existing installations and future upgrades. The length of 1m ensures easy and flexible placement in various settings.
Features
Application
Specification
|
Optical Parameter |
Wavelength Range: 1260~1650nm |
||||||||||||
|
1X4 |
1X8 |
1x16 |
1X32 |
1x64 |
2X4 |
2X8 |
2x16 |
2X32 |
|||||
|
Isolation Loss(dB) |
With Connector (Max) |
7.7 |
11.5 |
14.5 |
18.2 |
20.4 |
8 |
11.6 |
15.1 |
18.2 |
|||
|
Without Connector (Max) |
7.5 |
11.3 |
14.3 |
18.0 |
20 |
7.8 |
11.4 |
14.9 |
18 |
||||
|
Uniformity (dB) |
With Connector (Max) |
0.8 |
1.0 |
1.4 |
1.9 |
2.7 |
1.5 |
1.5 |
2.0 |
2.5 |
|||
|
Without Connector (Max) |
0.6 |
0.8 |
1.2 |
1.7 |
2.5 |
1.7 |
1.7 |
2.2 |
2.7 |
||||
|
PDL(dB) |
With Connector (Max) |
0.3 |
0.2 |
0.4 |
0.4 |
0.4 |
|||||||
|
Without Connector (Max) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.4 |
|||||||
|
Return Loss(dB) |
With Connector (Mix) |
UPC: 45, APC: 50 |
|||||||||||
|
Without Connector (Mix) |
50 |
||||||||||||
|
Directivity (dB) |
Min. |
55 |
|||||||||||
|
Package Size |
(LxWxH mm) |
4x4x50 |
4x7x50 |
4x12x60 |
4x5x50 |
4x8x50 |
|||||||
|
Operation Temperature (°C) |
|
-40~+85 |
|||||||||||
|
Length of Pigtail(m) |
|
According to customer’s requirement |
|||||||||||
|
Type of Pigtail(mm) |
|
0.9,2 or according to customer’s requirement |
|||||||||||
|
Type of Connector |
|
FC, SC or according to customer’s requirement |
|||||||||||
Table 2 – 2×N PLC Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Operating Wavelength (nm) |
1260~1650 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
Insertion Loss (dB) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
|
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
|
Return Loss (dB) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||
|
Storage Temperature (°C) |
-40~85 |
||||
|
Module Dimension (mm) |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
Notes
More types are available
