| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | FHPC-SCA-01-F8F-A1W-40 |
| ขั้นต่ำ: | 100PCS |
| ราคา: | 0.36USD-30USD |

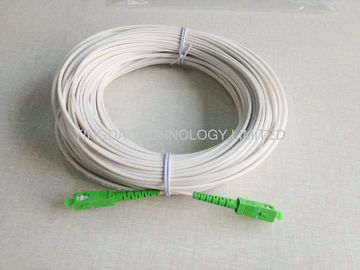

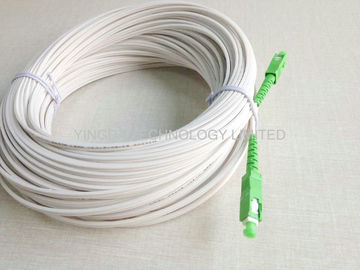

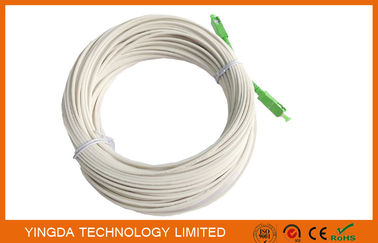

FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP

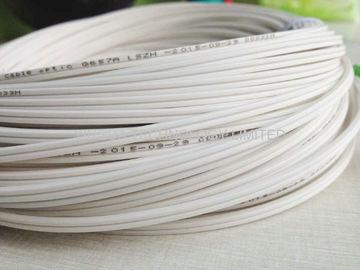

Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center, on both sides is
two parallel nonmetallic reinforcing element (FRP) or metallic strength member,finally extrusion black or
color polyvinyl chloride (PVC) or low smoke halogen-free flame retardant (LSZH) sheath.
Application
Implementation standards
Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Delivery Length:
1-300METERS / PACK
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
More Photos
