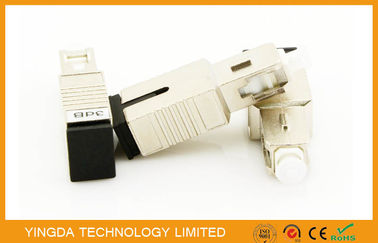

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น ATTN-SCF-01-B03
จำนวนสั่งซื้อขั้นต่ำ 100PCS
ราคา Negotiable
รายละเอียดการบรรจุ 1 pc / plastoc bag
เวลาการส่งมอบ 3-5 days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 50,000pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Attenuation 2dB test wavelength 1310nm, 1550nm
body material Plastic Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode
industry standard Telcordia TA-NWT-001209 connector type SC/PC
color dust cap: white, connector body: blue connector shape male female type
แสงสูง

build out attenuator

,

optical fiber attenuator

ฝากข้อความ
รายละเอียดสินค้า

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH





Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃





Order information



Attenuator

Item

Adapter type



FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)





Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 0Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 1



Other types female to male attenuator



Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 2
