| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | ATTN-SCF-01M-B10 |
| ขั้นต่ำ: | 100PCS |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 3-5 days |
| เงื่อนไขการจ่ายเงิน: | T/T or western Union |

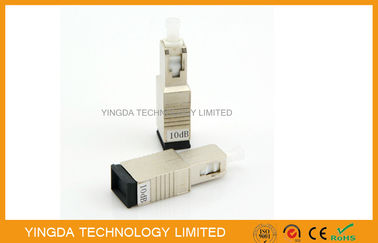

Metal Fiber Optic Attenuator SC/PC SC FC ST 10 dB Male to Female Blue
Fiber optic attenuator, as a kind of optical passive components, used in optical communication
system to debug the optical power performance,optical instrument calibration correction and fiber
optic signal attenuation. Products use attenation fiber which mixed with metal ions, it can adjust
the light power to the required level.
Features
Application
Specification
|
Item |
standard |
flat |
broadband |
|
Wavelength(nm) |
1310 or 1550 |
1310 or 1550 |
1310 and 1550 |
|
Bandwidth(nm) |
±20 |
±40 |
±40 |
|
Attenuation(dB) |
1 ~ 30dB can be specified |
||
|
Attenuation accuracy(dB) |
0.5 |
||
|
Return loss(dB) |
≥40 |
||
|
Working temperature(℃) |
-40~+70 |
||
|
Storage temperature(℃) |
-40~+85 |
||
Order information
|
Attenuator |
Item |
|
Adapter type |
|
|
FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
|
SC/PC fixed attenuator 1/2/3/4/5/10/15dB |
|
|
SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB |
|
|
Female to male type (F-M) |
FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB |
|
|
Variable(VOA) type |
FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator (MVOA attenuator) |
Other types female to male attenuator
|
|
