Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น ATTN-SC/ST S-MVOA-01
จำนวนสั่งซื้อขั้นต่ำ 100PCS
ราคา Negotiable
รายละเอียดการบรรจุ 1 pc / plastoc bag
เวลาการส่งมอบ 3-5 days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 50,000pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Attenuation 0-30dB Adjustable test wavelength 1310nm, 1550nm,850nm
body material metal Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode,multimode
connector type SC ST polish UPC APC PC
house color green,blue, beige
แสงสูง

build out attenuator

,

inline optical attenuator

ฝากข้อความ
รายละเอียดสินค้า

LC Mechanical Variable Attenuator, MVOA Attenuator 0-30dB LC/PC VOA Attenuator





LC Mechanical variable optical attenuator is generally used in optical measurement. In the when

measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving

light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with

all high performance of connectors.





When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.



Main usage:



(1) to control the power level: the output power of the vibration control in microwave super heterodyne

receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.

In the microwave receiver, automatic gain control, improve dynamic range.

(2) decoupling components: as to the coupling element between the oscillator and the load.

(3) the relative standard: as a comparison of the relative standard of power level.

(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value

can mutate,usually without introducing attenuation, encountered outside interference, a sudden

 increase in attenuation.




Main features

  1. Made of attenuation optical fiber, excellent performance
  2. Simple structure, compact size, easy to install
  3. Stable performance, high reliability
  4. Suitable for 1260 ~ 1650nm wide wavelength
  5. Low PDL
  6. Attenuation 1dB to 30dB
  7. Compact size, light weight
  8. Low reflection loss
  9. High power tolerance,long-term stability
  10. Independent of the wavelength effect
  11. Precisely control attenuation range
  12. Simple operation
  13. Meet the GR910



Application:

  1. EDFA power amplifier
  2. The power balance in the system
  3. CATV
  4. Optical add-drop multiplexer in the optical power regulator



Specification:



Parameter

Condition

Value

Attenuation(dB)

UPC

1~30

APC

Return loss(dB)

UPC

>50

APC

>60

Operating wavelength(nm)

1310, 1550, 1240, 1600

Attenuation accuracy

1~4dB

≤0.5dB

5~30dB

<10%

Operating temperature()

-

-40 ~ +75

Storage temperature()

-

-40 ~ +85

Polarization Dependent Loss(dB)

-

<0.2

Relative humidity (%)

75

95

Vibration(dB)

10 ~55,2Hrs

∆IL≤0.2

Impact(dB)

1.5m,5 drops

∆IL≤0.2

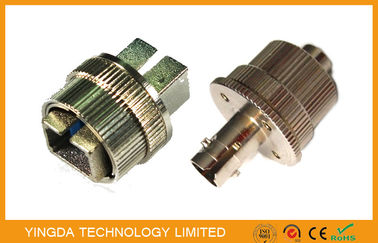

ST MVOA attenuator, metal 0-30dB variable adjustable fiber optic attenuator



Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm 0

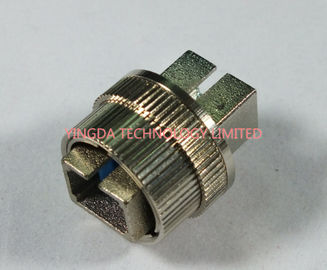

SC/PC, SC/APC MVOA attenuator, metal 0-30dB Mechanical adjustable fiber optic attenuator



Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm 1Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm 2
