| ขั้นต่ำ: | 5 PCS |
| ราคา: | สามารถต่อรองได้ |
| บรรจุภัณฑ์มาตรฐาน: | 1 pc / plastoc blister box or customized |
| Delivery period: | 3-5 days |
| วิธีการจ่ายเงิน: | T/T or western Union |
| ความสามารถในการจัดหา: | 50,000pcs per month |

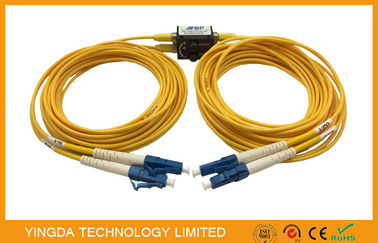

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type Singlemode
Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined
attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its
Impedance. Attenuators are widely used in the cable television system in order to meet the
requirements of multi port for electric level such as the amplifier input, output level control,
branch attenuation control.
Product features:
Application:
Technical Performance
|
Item |
value |
|
Operating Wavelength (nm) |
1310±30&1550±30 |
|
Insertion Loss (dB) |
<0.9 (With connectors) |
|
Max. Attenuation Range (dB) |
0.9-50 |
|
Insertion Loss Temperature Sensitivity (dB/°C ) |
<0.005 |
|
PDL (dB) |
<0.15 (<15dBattenuation) <0.25 (16~50dBattenuation) |
|
Return Loss (dB) |
>45 (UPC) |
|
Maximum Power Handling (mW) |
300 |
|
Operating Temperature (°C) |
-5~+70 |
|
Storage Temperature (°C) |
-40 ~+85 |
|
Connector type |
LC / UPC |
|
Pigtail |
SMF-28e(Φ2.0mmcable) |
|
Cable Length (m) |
1.0~1.1 |
|
Dimension (mm) |
26.0 x 16.0 x 16.0 |
Note: under normal conditions, not including connectors, welding device and end face loss
Order information
|
Item |
Wavelength working/nm |
Fiber type |
Pigtail length /meter |
Connector |
|
Mechanical Variable Attenuator (MVOA) |
F=1260~1620 |
SM=single mode |
1=1.0m |
1=FC/APC |
FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm
connectors: SC FC LC ST ,etc

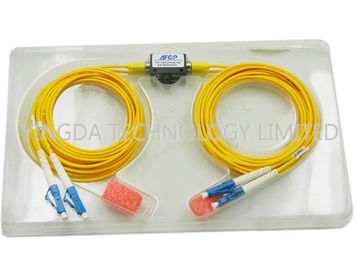

Package: blister box individual package
Polish method: UPC APC PC
Cable type: singlemode, multimode
|
|
