| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | GJYFJC8H |
| ขั้นต่ำ: | 2 กม |
| ราคา: | สามารถต่อรองได้ |

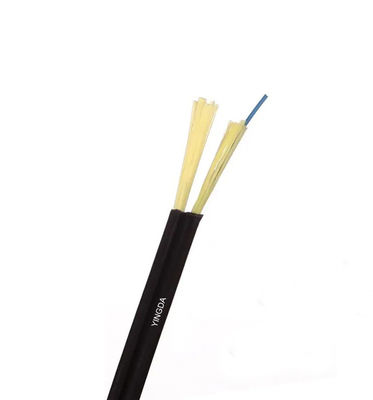

FTTH FTTX Figure 8 Drop Cable GJYFJC8H 1Core Mini Aerial Outdoor Fiber Optic Cable HDPE
FTTH Drop Cable will be directly connected till end user home, the bandwidth, wavelength and transmission technology are not restricted. There is one messenger wire with polyester yarn, steel or steel strands for supporting in aerial mounting. It is quite popular now on market.
Application
Technical specification

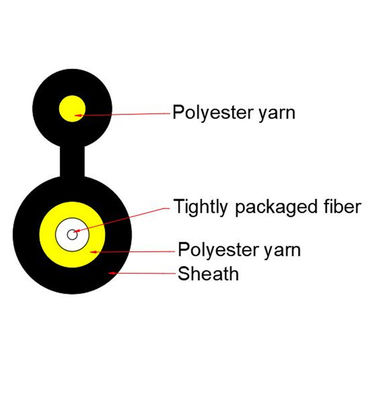

| Cable Type | GJYFJC8H | |
| Optical Fiber Unit | Fiber count | 1core |
| Fiber color code | G657A2, natural | |
| Tight buffer color | white | |
| Diameter | 0.85mm | |
| Material | LSZH | |
| Strength member | Material | Polyester yarn |
| Color | Black | |
| Diameter | 3.0±0.1mm | |
| Brace | Height/width | 0.7mm /0.6mm |
| Supporting wire | Material | Polyester yarn |
| Diameter | 2.0±0.1mm | |
| Cable sheath material | LSZH | |
| Cable color | Black | |
| Cable height | 5.7±0.1mm | |
| Cable weight | 14kg/km | |
| Attenuation | 1310nm≤0.4dB/km; 1550nm≤0.3dB/km; | |
| Cable tray length | 1KM | |
| Cable marking |
Indication in meters Quantity and type of fibers Factory name Date of manufacturing(year) Other requirements |
|
Cable Test Results
| Crush | Short term:500N/100mm | No fiber break and no sheath damage |
| Impact |
Height:1m Number:3times Weight:1N |
No fiber break and no sheath damage |
| Repeated |
Bending radius (≥60mm): 40xD No. Of cycle:30 Load:20N |
No fiber break and no sheath damage |
| Torsion |
Cycle:20 Length under test:250m Turns:±180° Load:20N |
No fiber break and no sheath damage |
| Temperature cycling |
Temperature:-20°C~+60°C Time of each step:8h Number of cycle:2 |
Loss change≤0.5dB@1550nm No fiber break and no sheath damage |
