| ขั้นต่ำ: | 50 pcs |
| ราคา: | 1.1USD-4.58USD |
| บรรจุภัณฑ์มาตรฐาน: | 1pc/ box,5pcs/carton box |
| Delivery period: | 5-8days after payment |
| ความสามารถในการจัดหา: | 10,000 pcs per month |

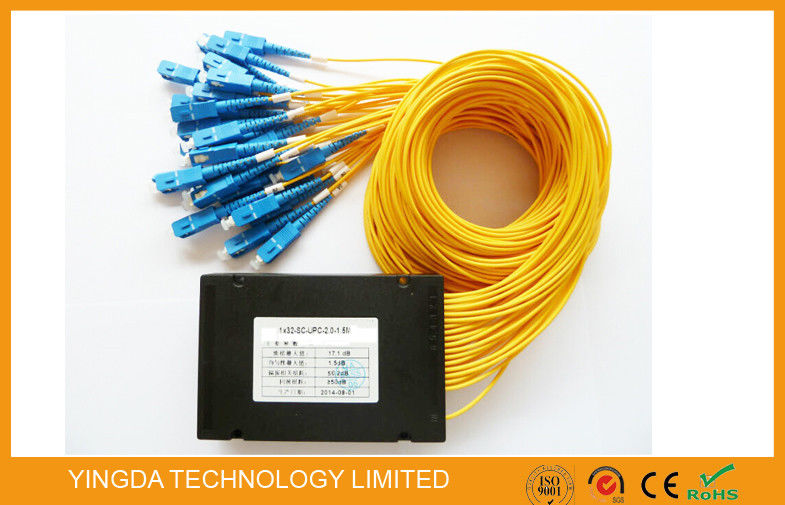

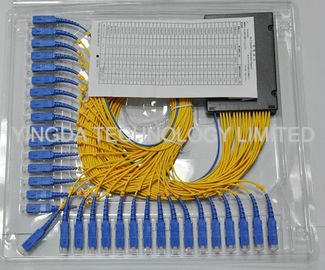

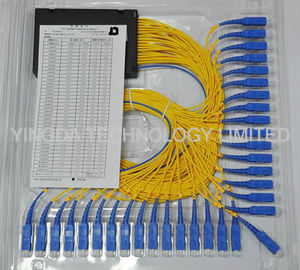

1*32 Passive Fiber Optic PLC Splitter Box FTTH PON Splitter Coupler
PLC (Planar lightwave circuit) splitter is made by lithography, corrosion, developing
production technology, use semiconductor process. Fiber array is on the surface of
optical chip, split function is integrated in the chip, that is to achieve 1:1 split on a chip;
then coupling respectively coupled input end and an output end multi channel fiber array
of the chip and packaged. It is widely used in FTTH network, CATV network,
GPON EPON network.
|
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
||
|
Operating Wavelength (nm) |
1260~1650 |
|||||||
|
Fiber type |
G657A or as customers’ request |
|||||||
|
Insertion Loss(dB) ( S/P) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
||
|
Return Loss(dB) (S/P) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
||
|
Polarization Dependent Loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
||
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
||
|
Wavelength Dependent Loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
||
|
Temperature Stability (-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
||
|
Operating Temperature(°C) |
-40~85 |
|||||||
|
Storage Temperature(°C) |
-40~85 |
|||||||
|
Square Tube (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
||
|
Box (mm) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
||
|
Flat Tube (mm) |
60×7×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
N/A |
||
|
|
