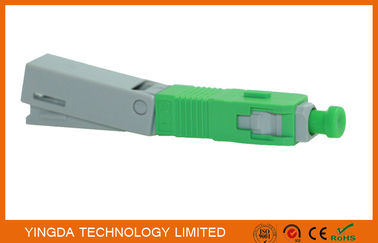

SC / APC Quick Assembly Connector Embedded Field Installable Fiber Optic Connector Green
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | FIC-SC-APC-23B |
จำนวนสั่งซื้อขั้นต่ำ | 100 PCS |
ราคา | Negotiable |
รายละเอียดการบรรจุ | 5pcs / blister box,1000pcs / carton box |
เวลาการส่งมอบ | 3-5 working days after get payment |
เงื่อนไขการชำระเงิน | T/T or western Union |
สามารถในการผลิต | 10,000pcs per day |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xfiber type | SMF-28e corning fiber | cable type | drop cable or indoor cable |
---|---|---|---|
connector | SC/APC | cable mode | single mode OS1 |
Connector house | GREEN | insertion loss | <0.3dB |
Tools | cotton, alcohol,fiber cleaver | application | FTTH |
user manual | English | sample | ok |
แสงสูง | quick assembly connector,FTTH connector |
SC / APC Quick Assembly Connector Embedded Field Installable Fiber Optic Connector Green
Sell Point:
- 1000% test in house before delivery
- specially use for drop cable
- each box with english user manual
- SC LC FC ST can be choosed
- Singlemode, multimode both ok.
- Productivity:10,000 pcs / day
Description
Field Assembly Connector (Fast Connector) is designed for simple and fast field termination of single
fibers, without the additional assembling tools. The heart of the Quick/ fast connector is a pre-polished
ferrule and a mechanical splice inside the connector body. They are widely usedin FTTx, Connecting up
Renovation of Computer/controlling Room applications. The installation process takes about two minutes,
and the connector during the installation process does not require any adhesive and curing process.
The pre-embedded optical fiber and the core end face for the fast connector are designed to guarantee
the perfect quality of ceramic ferrule end face, effectively protect the user equipment interface damage,
and reduce the connection loss.
Features
- Can be used as a single connector and attenuator
- Embedded optical fiber and end face pre-grinding,no need polish on site
- On-site installation, quick connection, easy operation
- No need glue, grinding or electrical tools, a kind of cold access
- High performance and reliability, convenient installation
- Mechanical and environmental performance in line with GR-326-CORE standard.
Specification
Applicable for |
Drop cable.indoor cable |
Optical fiber diameter |
125um(G657a&G657A2) |
Tight butter diameter |
250um |
Fiber mode |
Single mode |
Operation time |
About 60s (no fiber cut) |
Insertion loss |
≤0.5dB (1310/1550nm), special≤0.3dB |
Return loss |
≤-40dB |
Fastening strength of naked fiber |
5N |
Fastening strength of naked fiber holder |
10N |
Tensile strength |
50N |
Working temperature |
+40~+75°C |
On-line tensile strength(20N) |
IL≤0.5dB RL≤5dB |
Mechanical durability(500times) |
IL≤0.5dB RL≤5dB |
Drop-off test(drop-off height 4m,once per direction,totally 3times) |
IL≤0.5dB RL≤5dB |
Application
- Fiber optic cable distribution frame
- Optical fiber network equipment
- Fiber to the home
- Cable television network
Order information
FIC-XX-XXX-XX-XX
FIC=filed installable connector |
1 |
2 |
3 |
4 |
5 |
Connector type |
Polish mode |
Fiber type |
Applicable cable |
House color |
|
SC FC SC LC ST |
UPC APC |
SM=Single mode MM=Multi mode |
09=0.9mm 20=2.0mm 30=3.0mm 23=2.0*3.1mm drop cable |
B=Blue B=black G=green |
