Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xcolor | white | material | cold rolled steel metal |
---|---|---|---|
dimension | 430*250*130mm | LGX material | plastic |
splitter type | mini module splitter | connector type | sc/upc sc/apc,lc/apc,lc/upc |
max. splitter ratio | 1x8,1x4,1x6,1x2 | max. splitter quantity | 16pcs |
แสงสูง | fbt coupler,plc splitter |
Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal
This LGX splitter is design in a LGX module which is used for LGX chassis application. It is also terminated
with adapters and according to different requirements, LGX modules can be inserted into the chassis.
In addition, LGX splitter can also installed in rack mount chassis.
Chassis structure
Chassis specification
Model | Dimension | Adapter capacity | Max PLC splitter quantity | Material | Color | LGX size |
LGX-1U | 430*250*130mm | 144pcs SC | 16 pcs x 1:8 splitter (LGX slot) | Cold rolled steel | white | 130*100*25mm |
1X8 PLC splitter Blockless Type
Features:
Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity
Applications:
Ø LAN, WAN and Metro Networks
Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net
Technical specifications
Note: connector loss is excluded.
1X8 series | |||
Item | Unit | Index | |
Operating wavelength | Nm | 1260-1650 | |
Max. Insertion loss | P grade | dB | <10.3 |
S grade | dB | <10.5 | |
PDL(polarization dependent loss) | dB | ≤0.3 | |
Power splitting uniformity | dB | ≤0.8 | |
Min. Return loss | dB | ≥55 | |
Directivity | dB | ≥50 | |
WDL(wavelength dependent loss) | dB | ≥55 | |
TDL(temperature dependent loss)(-40~+85°C) | dB | ≤0.5 | |
Optical fiber length | m | 1.5(±0.1),or customized | |
Optical fiber type | G657A1,or customized | ||
Operating /storage temperature | °C | -40 ~+85 | |
Fiber color |
Input: Original Output:2*4Color(Blue/Orange/Green/Brown) |
||
Tube Type | Φ0.9mm, Hytrel | ||
Tube Color |
Input: White Output: White |
||
Connector Type |
Input: SC/UPC Output: SC/UPC |
||
Steel tube size | Mm | 40*4*4 | |
Mini module tube size | Mm | 60*7*4 | |
LGX size | Mm | 130*100*25 |
More pictures

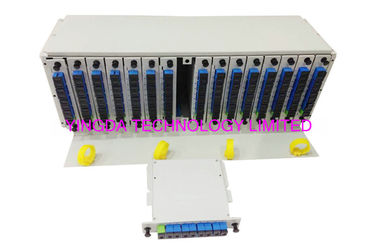

- This chassis completely can hold 16pieces x 1:8 Splitter mini module 0.9mm in LGX modular box.
- the LGX box is plastic, the chassis is metal material.
- the adapter or connector of the splitter output or inpt can be SC or LC, UPC or APC plished.
- splitter can be: 1x2,1x4,1x6 or 1x8 splitter ratio.
- this chassis is rack mount 19" with mounting ears.
- the chassis have cable warpping wires at the front panel. and can be closed totally.
- the chassis max. hold 144cores SC SIMPLEX.

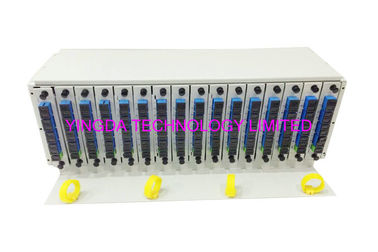

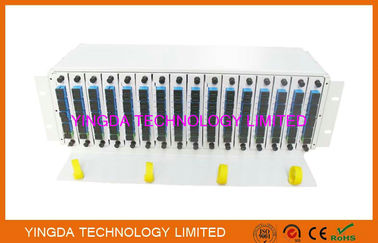

fully load completed view
chassis empty side view
chassis empty side view

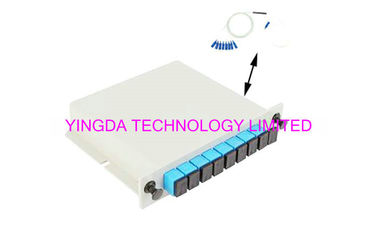

the LGX modular view,size:130*100*25mm, max. hold 1:1x8 splitter, 9pcs SC adapters.
the adapter can be SC simplex or LC duplex coupler on the LGX modular ports.
