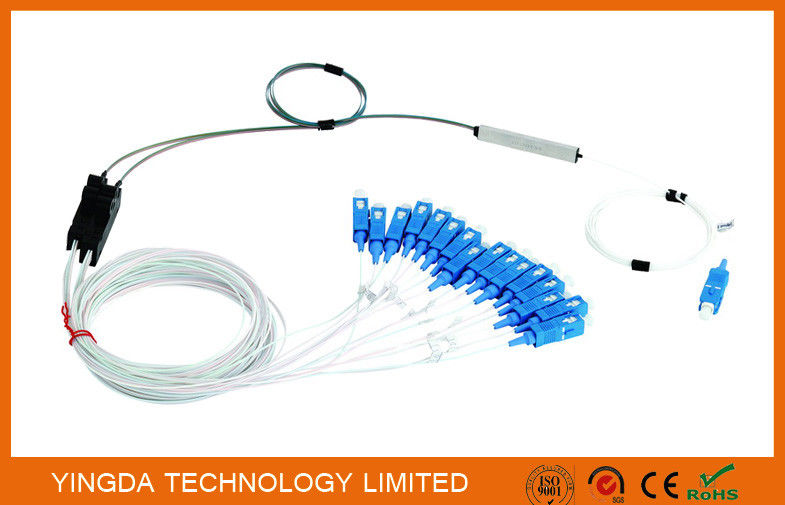

1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xsplit ratio | 1:16 splitter with fanout kits | connector | SC/APC, SC/UPC, LC/APC,LC/UPC |
---|---|---|---|
fiber type | corning fiber SMF -28e G657A1 | insertion loss | 13.6dB |
Uniformity (Max.) | 1.4dB | wavelength | 1260 - 1650 nm |
PDL(Max.) | 0.3dB | Standard | Telcordia GR-1221 and GR-1209 |
tube dimension | 60*12*4mm | cable diameter | 0.9mm |
cable color | white | ||
แสงสูง | fbt coupler,plc splitter |
1x16 Single Mode PLC Splitter (Planar Lightwave Circuit Splitter) with Fan Out SC/UPC Connectors
Singlemode standard tree coupler module 1X3, 3X3, 1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. They offer very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Standard tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.
Features
Singlemode PLC Splitters
in a variety of package types and configurations
Optical performance 100% factory tested
Operating Window: 1260~1650nm
Polarization Stability (dB): ≤ 0.50dB
Conforms to Telcordia GR-1209-CORE-2001 and GR-1221-CORE-1999
FC SC ST LC connectors available
UPC APC is available
Technical Specs for PLC Splitter with Connector
1xn SPLITTER
Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
Fiber Type | G.657.A | |||||||
Working Wavelength | 1260nm~1650nm | |||||||
Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |
P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |
Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
Return Loss(dB) | ≥50 | |||||||
Directivity(dB) | ≥55 | |||||||
Operating Temp.Gange | -40℃~+85℃ | |||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
2XN splitter
Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | ||
Fiber Type | G.657.A | ||||||||
Working Wavelength | 1260nm~1650nm | ||||||||
Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | ||
P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | ||
Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | ||
Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
Return Loss(dB) | ≥50 | ||||||||
Directivity(dB) | ≥55 | ||||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
