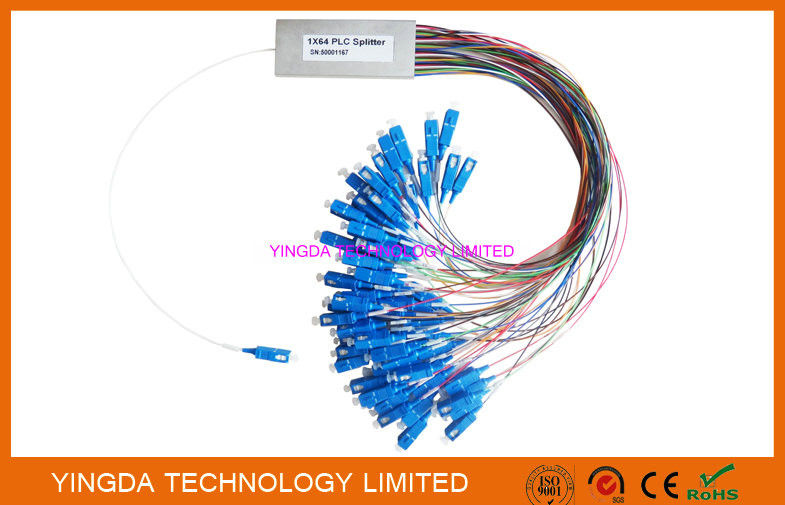

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xStandard | Telcordia GR-1221 and GR-1209 | split ratio | 1X64 mini splitter |
---|---|---|---|
tube dimension | 100*40*6mm | cable diameter | 0.9mm |
connector | SC/UPC coupler | cable color | input white, output: colorful |
fiber type | single mode G657A1 | insertion loss | 20.8dB |
Uniformity (Max.) | 2.odB | wavelength | 1260 - 1650 nm |
PDL(Max.) | 0.4dB | ||
แสงสูง | fbt coupler,plc splitter |

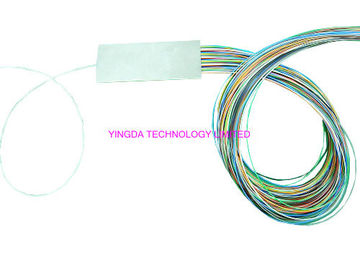

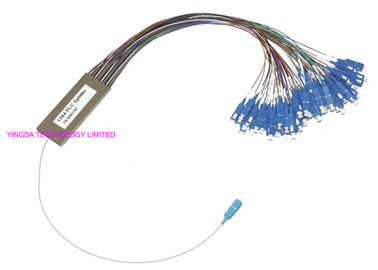

High Density 1 to 64 Mini Splitter PLC Mini Module Steel Tube, 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size,
high reliability, wide operating wavelength range and good channel-to-channel uniformity,
and is widely used in PON networks to realize optical signal power splitting.
YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for
specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-
1999 requirements.
Features
- Bidirectional, Compact size
- Wide wavelength range
- Low insertion loss, Low PDL and High reliability
- High return loss and Good repeatability
- Excellent channel-to-channel uniformity
- Telcordia GR-1221-Core Compliant
- 1x2 ,1X4,1X8,..,1X128 configurations
Applications
- LAN, WAN and Metro Networks
- FTTH project & FTTX Deployments
- GPON, EPON,CATV System
- Fiber Optic Test Equipment
- Data-base Transmit Broadband Net
Technical Specs for PLC Splitter with Fiber Optic Connectors
1xN splitter
Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Fiber Type | G.657A | ||||||
Working Wavelength | 1260nm~1650nm | ||||||
Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 |
P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
Return Loss(dB) | ≥50 | ||||||
Directivity(dB) | ≥55 | ||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
Ordering Information
PLCS | - | - | - | - | - | - | - |
Structure |
Fiber Type |
Package | Input | Output | Length | Connector | |
Structure | 0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64 | ||||||
Fiber Type | 1=G652D, 2=G657A1, 3=G657A2 | ||||||
Package Dimension | A1, A2,...A12, D, E, F, K, U, G, C, T, R, X | ||||||
Input Type |
B=250μm Bare Fiber ,L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
||||||
Output Type |
B=250μm Bare Fiber , L=900µm Loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter |
||||||
Pigtail Length |
05=0.5m, 10=1.0m, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=Others |
||||||
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPA=MPO/APC, FU/FA=FC/UPC input / FC/APC output, 00=None, X=Others |
