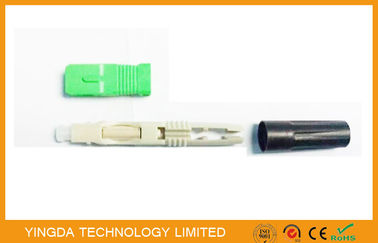

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | YD-FIC-SCA-A |
จำนวนสั่งซื้อขั้นต่ำ | 500PCS |
ราคา | Negotiable |
รายละเอียดการบรรจุ | 10pcs / blister box,1200pcs / carton box |
เวลาการส่งมอบ | 3-5 working days after get payment |
เงื่อนไขการชำระเงิน | T/T or western Union |
สามารถในการผลิต | 10,000pcs per day |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xแสงสูง | quick assembly connector,mechanical splicer |
---|
FTTH SC FC LC ST Fast Assembly Mechanical Connector, Field Installable Connector SC / APC
Sell point:
1. pre-polished and curing ferrule
2. pre-embedded fiber optic fiber
3. Length: 55mm
4. Cable stripper length:
Description
Quick connector is a kind of connector, it is used in field wiring operation and FTTH project
where need fast and stable connection. Because it has embedded fiber and pre-polished
and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help
to installation, maintenance,repair and fiber to the home for engineers. The pre-embedded
fiber and pre-polished and cured ferrule ensures the ferrule end face good quality, and
effectively protect the user equipment interface from damage, reduce the connection
attenuation loss.
Features
1. Can be used as a connector and attenuator
2. Can made any length of fiber optic patch cord on-site
3. On-site installation, simple and quick operation, only 2 minutes
4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process
5. Do not need hot melt, save power supply
6. High performance, good reliability
7. Mechanical and environmental performance conforms to GR-326-CORE standard.
Application
- FTTH network
- CATV network
- Fiber Optic Telecommunication
- Fiber Data Transmission
- Fiber Optic Test
- Fiber Optic Distribution Frame use

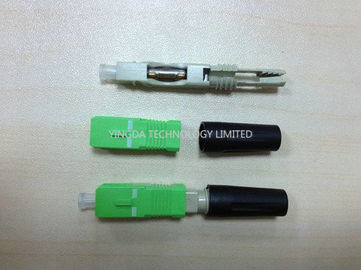

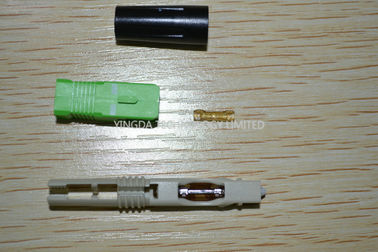

Connector Structure
Specification
Applicable for |
3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable |
Optical fiber diameter |
125um (G652D,G657A1,G657A2) |
Tight butter diameter |
250um |
Fiber mode |
Single mode |
Operation time |
About 60s (no fiber cut) |
Insertion loss |
≤0.3dB(1310nm &1550nm) |
Return loss |
≤-40dB |
Fastening strength of naked fiber |
>5N |
Fastening strength of naked fiber holder |
>10N |
Tensile strength |
>50N |
Using temperature |
-45~+80℃ |
On-line tensile strength(20N) |
△IL≤0.2dB △RL≤5dB |
Mechanical durability(500times) |
△IL≤0.2dB △RL≤5dB |
Drop-off test(drop-off height 4m,once per direction,totally 3times) |
△IL≤0.2dB △RL≤5dB |
Order information
- Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
- Cable type: drop cable , indoor cable 0.9mm, 2.0mm
- Connector color: Blue,Green, Black
- Fiber type: G652D, G657A1, G657A2
Product Length:
Total 55mm (boot- top of the dust cap)
boot to top of the ferrule: 53mm
Two package metods:
