12 Port FC Fiber optic Patch Panel rack mount , 12 Fibers FC SM SX ODF Patch Panel
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | cold rolled steel | color | black |
---|---|---|---|
capacity | 12 fibers | adapter | FC square adapter |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN LAN WAN network |
dimension | 430*300*1U or 430*250*1U | thickness | 1.0mm |
แสงสูง | rack mount odf,optical distribution frame |

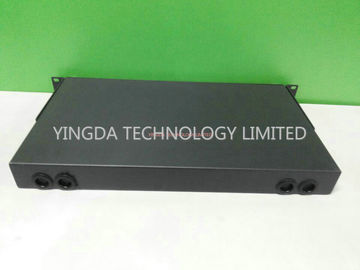

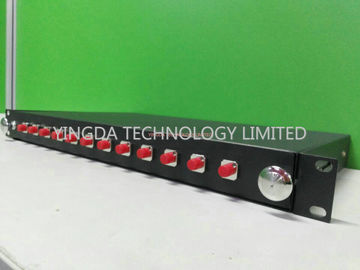

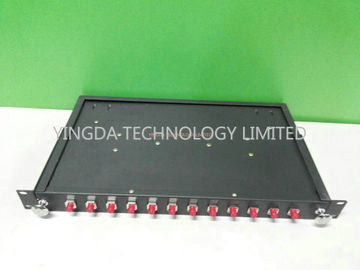

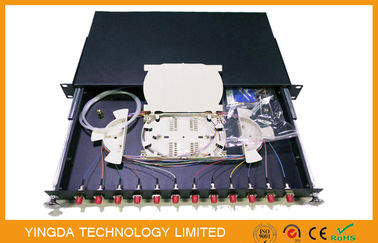

12 Port FC Fiber Optic Patch Panel, 12 Fibers FC SM SX ODF Patch Panel
Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission
communication network, which is suitable for indoor optical cable splice directly and branch connection,
and protective the fiber.
Features
- Applicable in the termination and 19'' standard structure,
- Metal sliding design
- rack mount in optical distribution frame ODF
- Suitable for FC,SC,ST,LC,E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying
- Box size: 430*250*1U available,for cost save.
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size (mm) |
Qty/ carton (pc) |
G.w (kg) |
GPSM-1U-SC12 |
430*300*1U |
12 |
485*420*350 |
5 |
29 |
GPSM-1U-FC24 |
24 |
485*420*350 |
5 |
29 |
|
GPSM-1U-2SC24 |
48 |
485*420*350 |
5 |
29 |
|
GPSM-2U-FC48 |
430*300*2U |
48 |
500*355*550 |
4 |
26.5 |
GPSM-4U |
130*300*4U |
192 |
500*350*540 |
1 |
18.9 |
Environmental requirements:
Not suitable outdoor use, if need to use, should take protective measures.
Working temperature |
-25 to +40 °C |
Storage temperature |
-25 to +55 °C |
Relative humidity |
≤85% (30°C) |
Atmospheric pressure |
70 ~ 106kPa |
Service life |
20 years |
Mechanical properties
Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal
box and the cable, and not less than 5N between wiring pigtail and terminal box.
Compression test: cable terminal box each should be able to withstand the vertical static pressure
not less than 200N.
Twist test : cable terminal box should be able to withstand the torsion angle.
Electrical properties
- Fiber optic cable box metal component and cable metal strengthening core, cable metal
- components and the ground insulation resistance
- insulation resistance:
- should be no less than 2*104M ohm, test voltage:500V (DC).
- voltage strength:
- no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc
- phenomenon.
